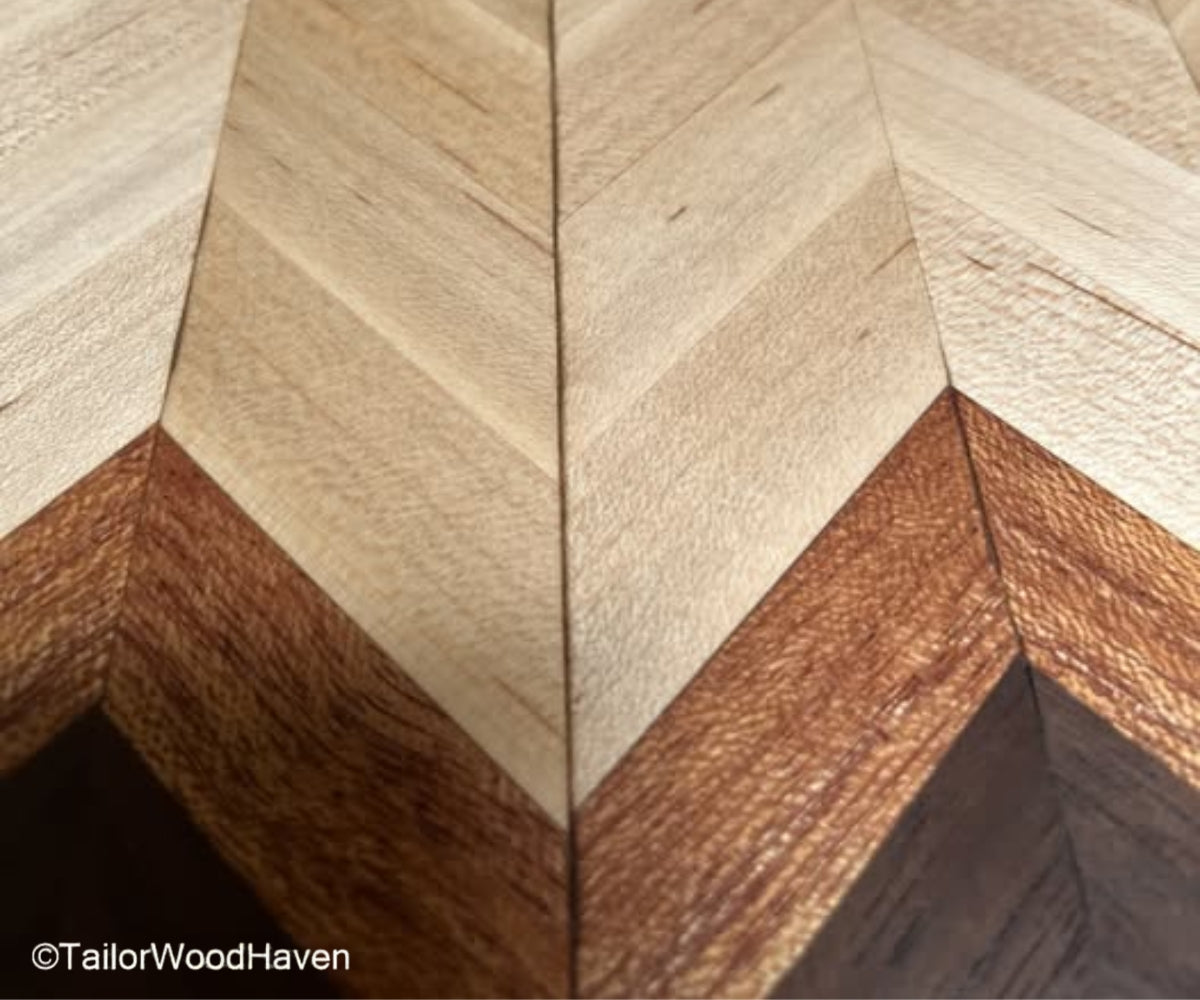

How to Make Chevron Wood Wall Art: A Step-by-Step DIY Guide

Chevron wood wall art brings a bold, graphic energy to a room that's hard to get from a flat painted piece. The zigzag pattern, built from angled wood strips meeting edge to edge, reads as structured and intentional even when it's made from mismatched offcuts, which is part of why it's such a popular DIY wood wall art project. The angles do need a bit more care than a straight-edged design, but the overall process is still very approachable for a first-time build.

This guide walks through exactly how to make chevron wood wall art, from planning your zigzag layout to the final finish.

Before you start, gather your materials. Most of these are inexpensive and easy to find at any hardware store, or reused from wood you already have.

Materials:

• Wood boards or strips, 2-4 inches wide (pine, oak, walnut, or cedar all work well)
• Plywood or MDF backing board
• Wood glue
• Sandpaper (120, 180, and 220 grit)
• Wood stain or paint (optional)
• Clear finish (polyurethane, wax, or oil)
• Picture-hanging hardware or a French cleat

Tools:

• Miter saw (a compound miter saw makes angled chevron cuts much easier)
• Measuring tape and pencil
• Combination square or angle guide
• Clamps
• Sanding block or orbital sander
• Paintbrush or cloth for finishing

A miter saw with an adjustable angle is really the tool that makes this project work. Chevron patterns rely on matching angles meeting cleanly at a center line, and a hand saw makes that kind of repeated precision much harder to hold onto across dozens of cuts.

The right tools ensure precise cuts for a clean, seamless chevron pattern

Step 1: Plan the Chevron Angle and Layout

Start by deciding on your zigzag angle, since this single choice affects how every other piece gets cut. A 45-degree angle is the most common choice for chevron wood wall art, giving a classic, sharp zigzag, while a shallower angle like 30 degrees creates a wider, more relaxed pattern. Steeper angles closer to 60 degrees give a tighter, more dramatic zigzag but require more precise cutting to avoid visible gaps.

If you admire the flawless symmetry and warm texture found in professional artisan pieces like the Chevron Groove Wood Wall Panel for Modern Rustic Interiors, you will quickly realize that meticulous layout planning is the secret to a high-end result. Sketch your pattern to scale on paper, marking the center line where the two sides of each chevron meet. This center line matters more in a chevron design than in most other geometric patterns, since it's the seam every viewer's eye naturally follows across the piece, and any misalignment there is the first thing people notice.

>>> Read more: How to Make Reclaimed Wood Wall Art: Step-by-Step for Beginners

Step 2: Prepare Your Backing Board

Cut your plywood or MDF backing board to your final dimensions before you cut a single strip of chevron wood. A common size for a chevron statement piece runs anywhere from 24x36 inches for a vertical accent to 48 inches or wider for a piece meant to anchor a large wall. Mark your center line directly onto the backing board in pencil, since this becomes your reference point for every strip you glue down later.

Plan the angle and center line carefully for a clean, symmetrical chevron design

Step 3: Cut the Angled Wood Strips

Set your miter saw to your chosen angle and cut a test pair of strips first, checking that they meet cleanly at the center line with no visible gap. Once the angle is confirmed, work through your full set of strips.

A few things help keep this step consistent:

• Cut strips slightly long, then trim to final length once you know how they sit against the backing board
• Flip your miter saw angle between cuts so each pair of strips mirrors correctly across the center line, rather than cutting a whole stack at one angle and realizing halfway through that half of them are cut wrong
• Label pairs as left and right so you don't mix up which strip goes on which side of the center line
• Sort strips by wood tone as you cut, since alternating or gradient tones across the chevron rows is often what gives the finished piece its visual rhythm

Step 4: Dry-Fit the Chevron Pattern

Lay your cut strips onto the backing board, starting at the center line and working outward, before any glue comes out. This is where you'll catch angle mismatches or gaps at the seam, and it's far easier to trim a strip now than after it's glued in place. Step back and check that the zigzag reads cleanly from a few feet away, since small misalignments at the center seam are often more visible from a distance than up close.

If your goal is to create a more intricate, nature-inspired pattern that mimics the flowing lines of the Chevron Leaf Wood Wall Panel for Rustic Interiors, taking the time to arrange and balance the individual wood grains during this dry-fit stage is the absolute key to achieving that high-end, organic look.

Step 5: Glue the Strips to the Backing Board

Starting from the center line and working outward in both directions keeps the pattern aligned as you go. Apply wood glue to the back of each strip and press it into place against the backing board and its neighboring strip, clamping or weighing down sections as you move outward so nothing shifts before the glue sets. Give the assembly a full 24 hours to cure, and wipe away any excess glue with a damp cloth while it's still wet, since dried glue can resist stain later and leave uneven patches.

Dry-fit and glue carefully to keep the chevron pattern aligned and seamless

Step 6: Trim the Outer Edges

Once the glue has cured, the strips along the outer edges of your backing board will likely overhang slightly, since chevron strips rarely land perfectly at the board's edge. Run a straight edge along the sides and trim any overhanging wood flush with the backing board, using a circular saw or a flush-trim router bit if you have one. This step is what gives the finished piece clean, square edges instead of a ragged border of angled offcuts.

Step 7: Sand the Surface

Sand the entire face of the piece, starting with 120 grit sandpaper to level any height differences between strips, then moving up to 180 and 220 for a smooth finish. Pay close attention to the center seam, since that's the area most likely to show a slight ridge if two strips weren't perfectly flush when glued.

Step 8: Stain or Finish the Wood

The finish is what makes a chevron pattern feel bold and graphic rather than flat. Depending on the look you're going for:

• Natural finish — a clear coat of oil or polyurethane keeps the grain visible and lets alternating wood tones do the visual work
• Two-tone stain — staining alternating rows in contrasting shades is one of the most classic chevron looks, and it makes the zigzag pattern read clearly even from across the room
• Single stain color — a uniform stain unifies mismatched wood while still showing the chevron shape through subtle grain and light variation
• Painted chevron — bold paint colors in alternating rows work well for a more contemporary, graphic statement piece

Apply your finish with a brush or cloth, following the grain of each strip, and let it dry fully between coats. Two thin coats generally look more even than one heavy one, especially along the angled seams where finish tends to pool.

Sand smoothly and choose a finish that enhances the chevron pattern and wood grain

Step 9: Add Hanging Hardware

Once the finish is dry, attach hanging hardware to the back of the piece. A French cleat is worth the extra step for a larger chevron piece, since it distributes weight evenly across the backing board and keeps the piece flush against the wall. Smaller pieces can get away with sawtooth hangers or a pair of D-rings.

A few details make the difference between a chevron piece that looks crisp and intentional and one where the zigzag feels slightly off:

• Get the center seam right before anything else — it's the one line every viewer's eye follows, so a clean, tight seam there matters more than perfection anywhere else on the piece
• Alternate wood tones by row, not randomly — a consistent tone pattern reads as far more deliberate than scattered variation
• Cut a few extra strips beyond what your layout calls for, since chevron angles leave more room for a miscut than a straight cut does
• Don't skip the dry-fit step — angle mismatches are much easier to catch and fix before glue than after
• Keep your miter saw angle locked and double-check it periodically — a saw that drifts even a degree partway through cutting will show up as a widening gap by the time you reach the outer strips

Precise angles and a clean center seam are key to a crisp, professional chevron design

>>> Explore: DIY Scrap Wood Wall Art Ideas: 10+ Creative Ideas for Easy Home Decor

Chevron wood wall art rewards a bit of extra planning around angles and center-line alignment, but the payoff is a piece with real graphic punch that's hard to get from a simpler pattern. Once you've nailed the angle and gotten the center seam tight, the rest of the build moves quickly, and the zigzag pattern does most of the visual work on its own. Hung above a bed, sofa, or entryway, it's the kind of piece that reads as a deliberate design choice rather than a DIY project, which is exactly the effect most people are going for.
