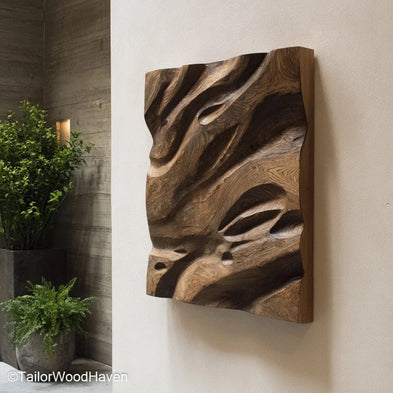

DIY Carved Wood Wall Art – Step‑by‑Step Guide

Would you like to create an artistic focal point that reflects your personal style? Starting a DIY carved wood wall art project is easier than you may think when you have a clear plan to follow. In this guide, Tailor Wood Haven will walk you through each stage, from choosing the right wood panel and preparing essential tools to practicing basic carving techniques that will turn your creative idea into a finished piece.

DIY carved wood wall art

1. What do you need to make carved wood wall art at home?

A DIY carved wood wall art project requires a suitable wood panel, essential tools, and a manageable design. These three factors directly affect both safety and a beginner’s ability to complete the artwork successfully.

1.1. Choose the right wood type and panel size

Basswood and poplar are suitable for beginners because they are relatively soft, have an even grain, and are easy to shape with hand tools. Pine is more affordable and widely available, but choose a board with few knots and no resin pockets or cracks. Before purchasing, place the board on a flat surface to check for warping and inspect both sides for defects.

For a first project, a 20 × 30 cm or 30 × 40 cm panel is easy to clamp and rotate on a workbench. A thickness of approximately 12–18 mm provides enough material for shallow reliefs measuring 2–4 mm without significantly weakening the panel. Larger pieces or overly thin boards are more difficult to control when carving by hand.

Choose the right wood and panel size

1.2. Prepare the tools and protective equipment

Beginners do not need to invest in a professional carving set. A simple design only requires the right tools for each stage:

• Carving tools: A V-tool for cutting grooves and a small gouge for removing wood from wider areas.
• Pattern-transfer tools: A pencil, ruler, tracing paper or graphite transfer paper, and painter’s tape.
• Securing tools: Two bench clamps, a non-slip mat, and a sturdy workbench.
• Surface-preparation tools: 120-, 180-, and 240-grit sandpaper, along with a soft brush for cleaning the grooves.
• Finishing materials: Wood oil, wax, or a water-based finish suitable for home use.
• Protective equipment: Safety glasses, cut-resistant gloves, and a dust mask.

Clamp the panel firmly to the workbench rather than placing it on your lap or holding it with one hand while carving. Always direct the blade away from your body and keep the hand holding the wood out of the cutting path. Before starting, inspect the tool handles, carving edges, and clamps, as loose or excessively dull tools may slip off the intended line.

Prepare carving tools and safety equipment

1.3. Select suitable wood carving wall art patterns

Beginner-friendly wood carving wall art patterns should feature large shapes, clearly separated lines, and few intersections. Geometric motifs, organic curves, and radial compositions are generally easy to transfer onto wood and carve by hand. Avoid portraits, small lettering, and sharp details because they require greater precision and are more likely to chip along the edges.

To choose a suitable design direction, you can refer to two pieces from Tailor Wood Haven’s carved wood wall art collection. However, beginners should focus on studying their line arrangements and simplifying the patterns to suit basic carving tools.

• Flowing Relief Carved Wood Wall Panel: This piece provides a useful reference for arranging continuous, flowing curves. For a DIY version, reduce the number of wave layers and increase the spacing between the lines.
• Modern Carved Wood Wall Art: This design illustrates a geometric composition radiating from the center. To simplify it, use fewer sections and remove sharp angles or intersections positioned too close together.

After selecting a pattern, resize it to match the wood panel and leave a margin of approximately 15–20 mm along all four edges. Each groove should be wide enough for the chosen carving tool. You should also mark two or three planned depth levels with different symbols on the drawing to distinguish the layers and avoid carving the wrong areas.

Modern Carved Wood Wall Art

2. Step-by-step guide to making DIY carved wood wall art

The following process focuses on shallow-relief carving, making it suitable for a home project. Complete each step carefully before moving on to the next stage.

Step 1: Flatten and prepare the wood surface

Sand the entire front surface along the grain with 120-grit sandpaper, then switch to 180 grit to smooth out the remaining scratches. Remove all wood dust with a dry cloth or soft brush and inspect the surface under angled light. If you notice any low spots or saw marks, sand those areas again before transferring the pattern.

Step 2: Transfer the design onto the wood panel

Place graphite transfer paper between the printed pattern and the wood panel, then secure one edge with painter’s tape to prevent the design from shifting. Trace each line using a hard pencil and moderate pressure. Before removing the paper, lift one corner to check that the entire pattern has transferred clearly, particularly around curves and intersections.

Step 3: Carve the outline of the pattern

Guide a V-tool along the outline at a consistent angle, creating an initial groove approximately 1 mm deep. Do not attempt to reach the final depth in a single pass, as the tool may slip or chip away wood that needs to remain. When following curves, rotate the panel gradually instead of twisting your wrist to maintain an accurate cutting direction.

Carve the initial groove with a V-tool

Step 4: Carve each section from shallow to deep

This is the main stage when learning how to carve wood wall art. Use a gouge to remove thin layers from inside the outlined areas, beginning with wider sections before working close to the edges. If the grain begins to tear or lift in front of the blade, stop and reverse the cutting direction. Regularly view the panel from an angle to compare the depth of each carved section.

Step 5: Clean the grooves and sand the details

Fold 180-grit sandpaper into narrow strips to smooth the groove bottoms and wider recessed areas, then use 240-grit sandpaper for the final pass. Avoid sanding raised edges for too long, as this can round off the defined lines. For tight corners, wrap the sandpaper around a thin wooden stick, work gently, and remove any trapped dust with a soft brush.

Step 6: Apply the finish

Test the selected finish on a scrap piece of the same wood to check its color before applying it to the artwork. For wood oil or a water-based finish, spread a thin coat along the grain with a lint-free cloth or soft brush. Wipe away any excess collected in the grooves and allow the surface to dry for the period stated on the product label. Apply another coat only when the surface no longer feels tacky.

Step 7: Attach the hardware and hang the artwork

Place the artwork face down on a clean, fabric-covered surface, then measure and mark the hardware positions on the back. A sawtooth hanger works well for a small panel, while two D-rings provide greater stability and make leveling easier. Use screws shorter than the panel’s thickness to prevent them from piercing the front. Once installed, pull the hardware firmly by hand and check the artwork’s balance before hanging it.

Attach the hardware and hang the artwork securely

3. Practical tips and common mistakes beginners should avoid

Minor mistakes can often be corrected if they are detected early. Therefore, inspect the surface after each stage instead of waiting until the entire artwork is complete.

3.1. Practice with the tools before carving

A scrap piece of the same wood allows you to understand the material’s hardness before working on the main panel. Practice carving straight lines, curves, and recessed areas to determine the appropriate pressure. If the tool requires excessive force, leaves torn fibers, or frequently slips off course, the cutting edge may be dull or the carving direction may not align with the grain.

3.2. Correct uneven cuts and chipped edges

If the tool slips beyond the outline, continuing to carve immediately may make the mistake worse. First, determine whether the misplaced cut can be incorporated into a curve or widened into a recessed background area. If an intact piece of wood has broken away, you may reattach it with wood glue; however, allow the adhesive to dry completely before resuming the carving process.

3.3. Maintain consistent depth across carved sections

Carved sections may appear even when viewed from the front but reveal noticeable differences under angled light. After completing each area, rotate the panel in several directions to examine the shadows and transitions between depth levels. A wooden depth gauge marked with the planned measurements can also help identify areas that require adjustment without unnecessarily lowering the entire background.

3.4. Preserve crisp details during finishing

Carved lines often lose definition when wood dust or finishing material accumulates inside narrow grooves. Before applying the finish, clean the artwork with a soft brush and inspect all recessed corners carefully. Apply oil, wax, or another protective finish in thin coats with a brush instead of pouring it directly onto the surface. This helps the finish dry evenly without obscuring the carved details.

Test your tools on scrap wood first

>> Explore more: What is Wood Carving In Art? Art History, Styles & Home Use

4. FAQs about DIY carved wood wall art

4.1. How long does it take to make DIY carved wood wall art?

A small design with minimal detail typically requires about 4–8 hours of hands-on work, excluding the drying time for the finish. The actual duration depends on the wood’s hardness, the number of carved depth levels, and your experience with the tools. Beginners should divide the project into several sessions because working continuously can cause hand fatigue and make the carving lines harder to control.

4.2. Can carved wood wall art be made without power tools?

Yes. You can create a shallow-relief design using only a V-tool and gouge if the pattern features large shapes and limited detail. Power tools mainly speed up material removal or help reach narrow areas, but they are not essential. When carving entirely by hand, keep the tools sharp and remove the wood in thin layers to maintain better control over the surface.

4.3. How thick should a wood panel be for carving?

For a small home project, a 12–18 mm thick panel is suitable for shallow carvings approximately 2–4 mm deep. If the design includes multiple depth levels or requires a more deeply recessed background, choose a panel measuring 18–25 mm thick. Plan the carving depth carefully to ensure enough wood remains to prevent cracking or warping after the hanging hardware is installed.

4.4. How should carved wood wall art be cleaned and maintained?

Whether it is a DIY piece or a product from a Wood Wall Art collection, clean it with a soft-bristled brush or dry microfiber cloth to remove dust from the surface and carved grooves. Do not spray water or cleaning products directly onto the artwork, as moisture may cause the wood to swell or discolor. Keep it away from heat, humidity, and direct sunlight to reduce the risk of warping, fading, and surface cracking.

Completing a DIY carved wood wall art project requires patience, but the finished piece will give you a genuine sense of accomplishment. By mastering the preparation process, basic carving techniques, and simple ways to correct common mistakes, you can gradually bring each wood grain to life with your own hands. If you need further design inspiration or prefer a professionally carved piece, explore Tailor Wood Haven’s beautiful collection today.
